This 6-lesson series explains the full process — from site selection to finishing the sauna interior.
Lesson 1
Choosing and Preparing the
Right Site for Your DIY Sauna
Before you start building, buying materials, or even finalizing your layout, there’s one decision that will influence everything else:
Where you place your sauna.
Site selection isn’t just about convenience or aesthetics—it affects cost, code compliance, performance, and long-term enjoyment. Many DIYers rush this step and end up dealing with avoidable problems later, from bylaw issues to unexpected structural upgrades.
This lesson walks you through how to choose the right location and prepare your site properly, whether you’re building in a city backyard, on an existing deck, or in a more rural setting.
1. Start with Local Bylaws
If you’re building your sauna in a city or suburban backyard, the very first step should be checking local bylaws.
Municipal regulations often dictate:
- Minimum distance from property lines
- Required setbacks from fences or neighboring structures
- Maximum accessory structure size
- Height restrictions
For example, when I built my own sauna, I was required to maintain a minimum distance from the fence separating my property from my neighbor’s. This single rule influenced the entire layout and placement of the build.
2. Ground Build vs Deck Build
Building on the Ground
This option gives you the most flexibility and is often the simplest from a structural standpoint. However, the
ground must be:
- Level
- Well-draining
- Properly prepared to avoid movement over time
Site prep here focuses on stability and moisture control.
Building on an Existing Deck
Building a sauna on a deck can be convenient, but it requires extra due diligence.
Before committing, you must confirm:
- The joists can handle the additional load
- The footings are designed for more than just light foot traffic
- The deck structure won’t flex or settle under the sauna’s weight
Saunas are heavier than they look and decks look in better shape than they really are.
3. Plan Electrical Early (Even If You’re Not Ready Yet)
If you plan on using an electric sauna heater, electrical planning should happen before construction begins —not after.
Even if you’re not pulling wire yet, it’s smart to:
- Speak with an electrician early
- Understand power requirements
- Identify the most efficient heater location
Doing this upfront allows you to:
- Optimize heater placement
- Reduce wire length
- Minimize trenching or wall penetrations
- Save on electrical labor and materials
Pro tip: Good site placement can significantly reduce wiring distance—and wiring costs.
Lesson 2
Building the Base of Your DIY Sauna
After selecting your site, the next step is building a base that is structurally sound and thoughtfully designed.
This is where mistakes can become expensive.
Overbuilding wastes money, while poor load planning leads to long-term issues. The objective is simple: create a base that transfers weight efficiently and consistently to the ground.
This lesson covers three essential design choices that set the foundation for a reliable, long-lasting sauna.
1. Footings: Gravel Pads vs Deep Concrete Footings
For most DIY sauna builds, a 6" gravel pad with concrete blocks is all you need.
This approach works because:
- The gravel allows water to drain freely
- The blocks spread the load evenly
- The structure stays elevated and dry
In typical backyard builds, this setup provides more than enough support without the cost, labor, and
permanence of deep concrete footings.
That said, 4-foot-deep concrete footings are recommended in specific situations:
- If the sauna is built more than 2 feet off the ground
- If the sauna is attached to an existing structure, such as a deck
- If that structure is already supported by concrete footings
In these cases, deeper footings help ensure consistent movement, proper load transfer, and long-term stability.
2. Joists and Weight Distribution
As with any structure, joist sizing starts with one fundamental question: Where is the weight being
distributed?
In a sauna, you need to account for:
- The weight of the structure
- The heater
- And the people using it
This is where the IRC or local municipal rules come into play. These codes define allowable joist spans based on lumber size, spacing, and expected loads. Because this sauna design uses a short span of 6 feet, 2x6 joists are well within accepted limits for this application.
2x4s should never be used as joists:
- They are not included in official span tables
- Using them risks flexing and long-term issues
At the same time, upsizing to 2x8s adds cost without providing meaningful benefit at this span.

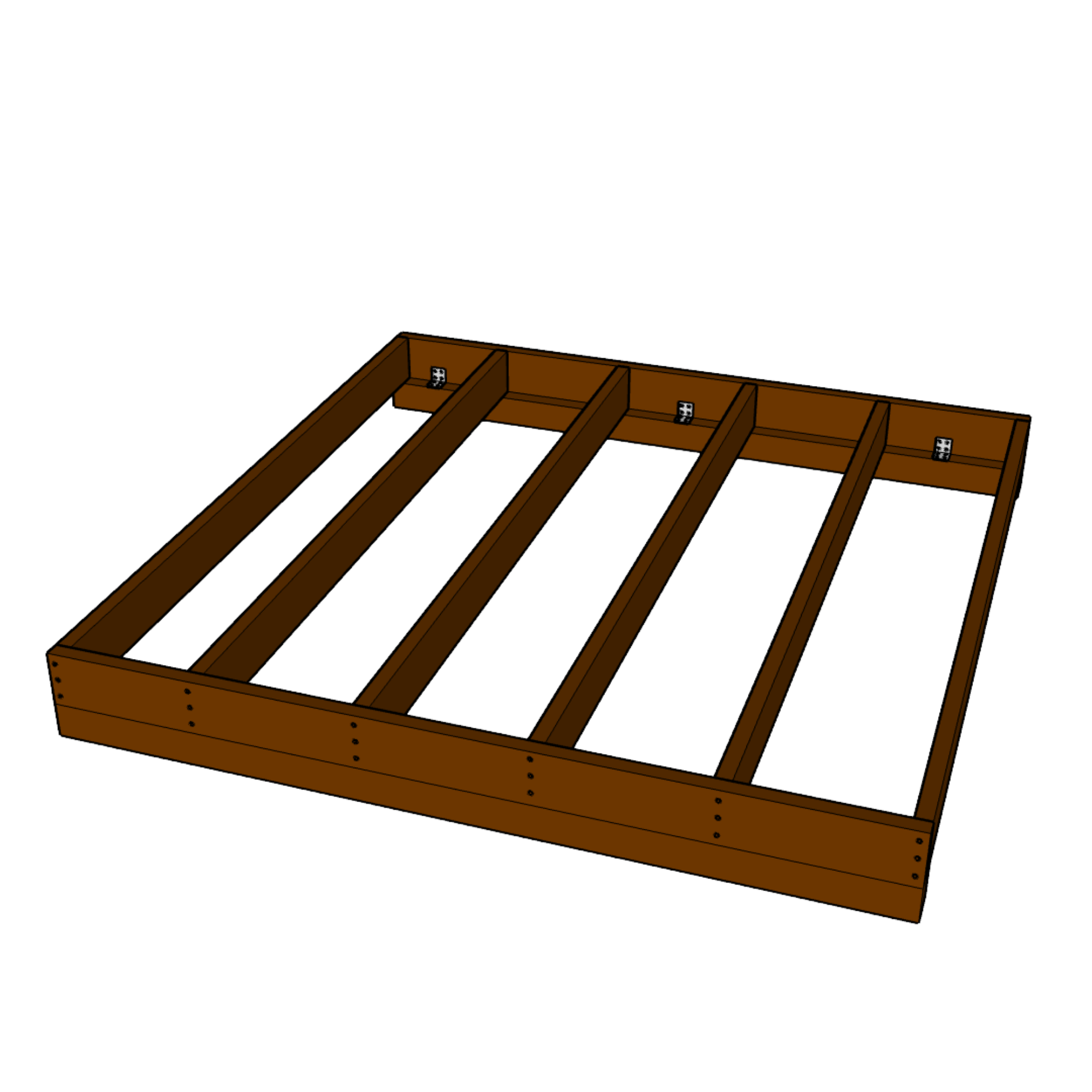

Just as important as joist size is how loads move through the structure, especially in northern climates with snow.
In this design:
- The rafters sit on the front and back walls
- Roof and snow loads travel down through those walls
- The front and back of the joists are supported by a 4x4 beam
- That beam sits on concrete blocks spaced every 12 inches
- The load transfers from roof → walls → joists → 4x4 beam → blocks → ground
You want roof and snow loads to be carried at the ends of the joists, not by the middle of their span. This creates a clear, efficient load path and prevents long-term deflection.
3. Where to Use and Not Use Pressure-Treated Wood
Inside a sauna, pressure-treated wood should never be used. But the base is a
different environment.
Pressure-Treated Lumber:
- Structure framing - NOT recommended
- Framing of base - Recommended
Structure framing - NOT recommended
- Pressure-treated lumber contains chemical preservatives that can release toxic off-gasses when heated above 212°F (100°C)
- The 2x4 framing inside the sauna is protected from humidity by a continuous reflective vapor barrier, eliminating the need for pressure-treated lumber
- Pressure-treated lumber is typically up to three times more expensive than regular framing lumber, adding cost without providing benefits in this application
Framing of base - Recommended
- The base doesn’t get affected by the heat since it’s below the floor system
- Pressure-treated lumber resists moisture and ground exposure
- It significantly improves durability for the base
Using pressure-treated wood in the base increases longevity without introducing
any of the concerns associated with treated lumber inside the sauna.
Lesson 3
Framing the Walls of Your DIY Sauna
With your base complete, it’s time to frame the walls — the structure that will carry your roof loads, define your interior space, and create the shell that holds heat efficiently.
Wall framing isn’t complicated, but small structural decisions here make a big difference long term. This lesson focuses on three key areas: material selection, roof pitch design, and proper wall assembly.
1. Choosing the Right Framing Material
For this design, use untreated 2x4 pine studs for the wall framing.
Pine is perfectly suitable in this application because:
- It is not exposed to weather
- It is not exposed directly to interior heat
- It will be covered with cedar or hemlock interior cladding
Since the framing sits behind insulation and a reflective vapor barrier, it remains protected from both moisture and direct heat exposure.
Pressure-treated lumber is not recommended for interior wall framing in a sauna. It is unnecessary, more expensive, and not intended for high-heat interior environments.
2. Wall Heights and Roof Pitch Requirements
In this design, you will build:
- Three walls at the same height
- One taller front wall to create roof slope
The front wall must create a minimum 1/12 roof pitch.
A 1/12 pitch means:
- 1 inch of vertical rise for every 12 inches of horizontal run
This is the minimum slope required for proper water drainage when using certain roofing materials.
Roofing considerations:
- If using metal roofing, it should be minimum 24-gauge at a 1/12 pitch
- If using thinner metal, it must be supported with continuous plywood sheathing
- If using shingles, you need a minimum 2/12 pitch, along with ice-and-water shield or double underlayment to prevent leaks
Always match your roof pitch to the roofing material you plan to install.

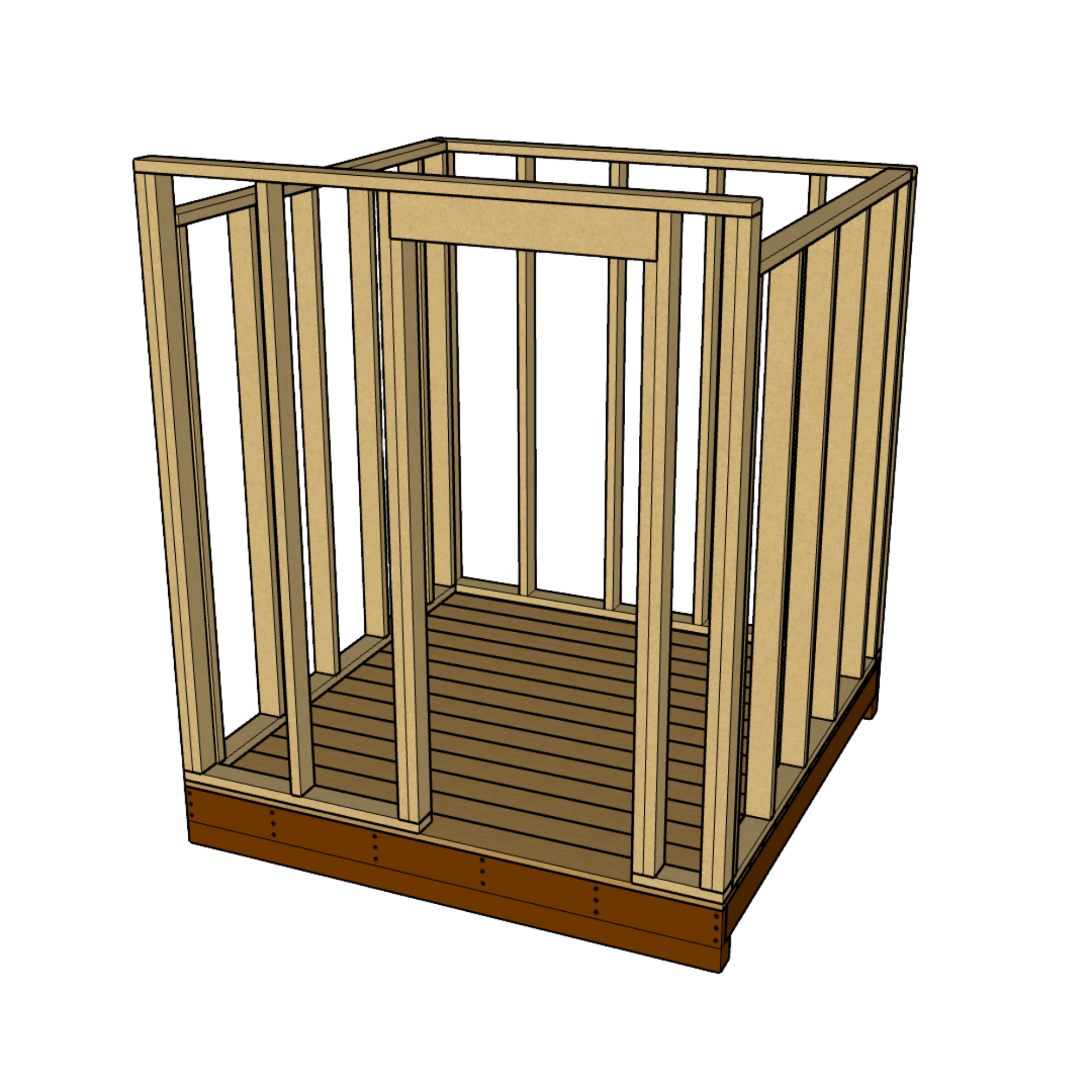

3. Building and Assembling the Walls
To frame each wall:
- Cut your 2x4 studs to length
- Nail them between a 2x4 bottom plate and a 2x4 top plate
- Space studs 16 inches on center
- Add a second top plate to tie the walls together
When calculating wall height, remember to account for:
- Bottom plate thickness
- First top plate
- Second top plate
Two important structural details:
- Double the end studs on the front and back walls
- This gives you proper nailing surface when attaching the side walls.
- Follow the rule of thumb: nail every 16 inches along connections.
Before installing OSB sheathing, always check that the walls are square.
You can adjust by securing the bottom plate and pushing the top of the wall into alignment before fastening sheathing.
Lesson 4
Building the Roof and Closing in the Structure of Your DIY Sauna
With your walls framed and standing, it’s time to lock everything together. The roof and sheathing transform your sauna from a framed structure into a rigid, weather-protected shell.
This stage is critical for strength, ventilation, and long-term moisture control. We’ll focus on three essential elements: roof framing, roof sheathing and roofing material, and wall sheathing with siding.
1. Framing the Roof
The roof should be framed using 2x6 rafters, spaced 16 inches on center. These do not need to be pressure treated, as they are fully protected within the roof assembly.
Extend the rafters a minimum of 6 inches past the front and back walls. This overhang:
- Prevents water from running directly down the wall assembly
- Reduces the risk of infiltration at the top plate
- Allows you to install soffit ventilation, which is extremely important for roof drying and mold prevention
A sauna roof behaves differently than a typical house roof.
On a house, passive ventilation usually requires a minimum 2/12 pitch. In a sauna, however, the large temperature difference between inside (up to 194°F) and outside (-4°F to 95°F) creates strong natural convection. This allows effective airflow even with a 1/12 pitch, provided ventilation openings are installed properly.
If you’d like side overhangs, you can install sleepers on the last rafter to support the outermost roof member.
One critical structural detail:
Cut a birdsmouth notch where the rafter sits on the wall. This ensures proper load transfer and prevents point loading on the edge of the plate.
2. Roof Sheathing and Metal Installation
Many steel roof panels sold at big-box stores are 26 or 28 gauge, which are relatively thin.
For this reason, I recommend:
- Installing 1/2" plywood sheathing over the rafters
- Adding roofing felt or underlayment
- Then installing the metal roofing panels
This creates:
- A solid nailing surface
- Reduced vibration and noise
- Better long-term durability
- Improved leak resistance
Even if using thicker metal panels, solid sheathing provides structural rigidity and better overall performance.
3. OSB Sheathing, Weather Barrier, and Siding
Once the roof structure is complete, sheath the walls with 1/2" OSB. This step:
- Rigidifies the entire structure
- Prevents racking (side-to-side movement)
- Ties all walls together structurally

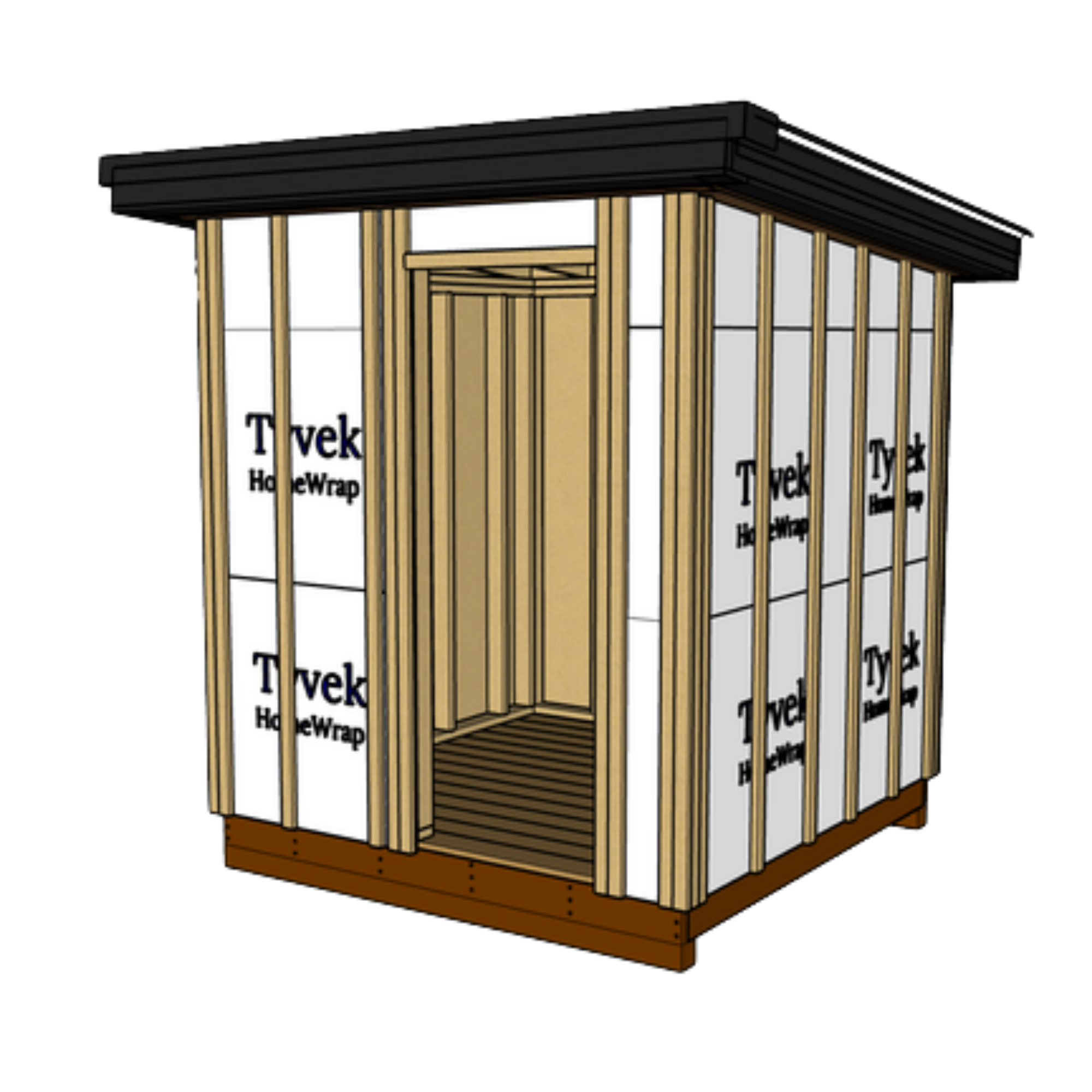

After installing OSB, wrap the entire structure with Tyvek (or equivalent house wrap).
Tyvek acts as:
- A water-resistant barrier
- A breathable membrane that allows trapped moisture to escape
This is critical in a sauna build, where temperature differences can drive moisture into wall assemblies.
Next, install 1x2 furring strips vertically over the sheathing. This creates approximately a 1-inch air gap between the sheathing and siding. That air gap:
- Promotes drying
- Reduces trapped moisture
- Extends the life of your siding

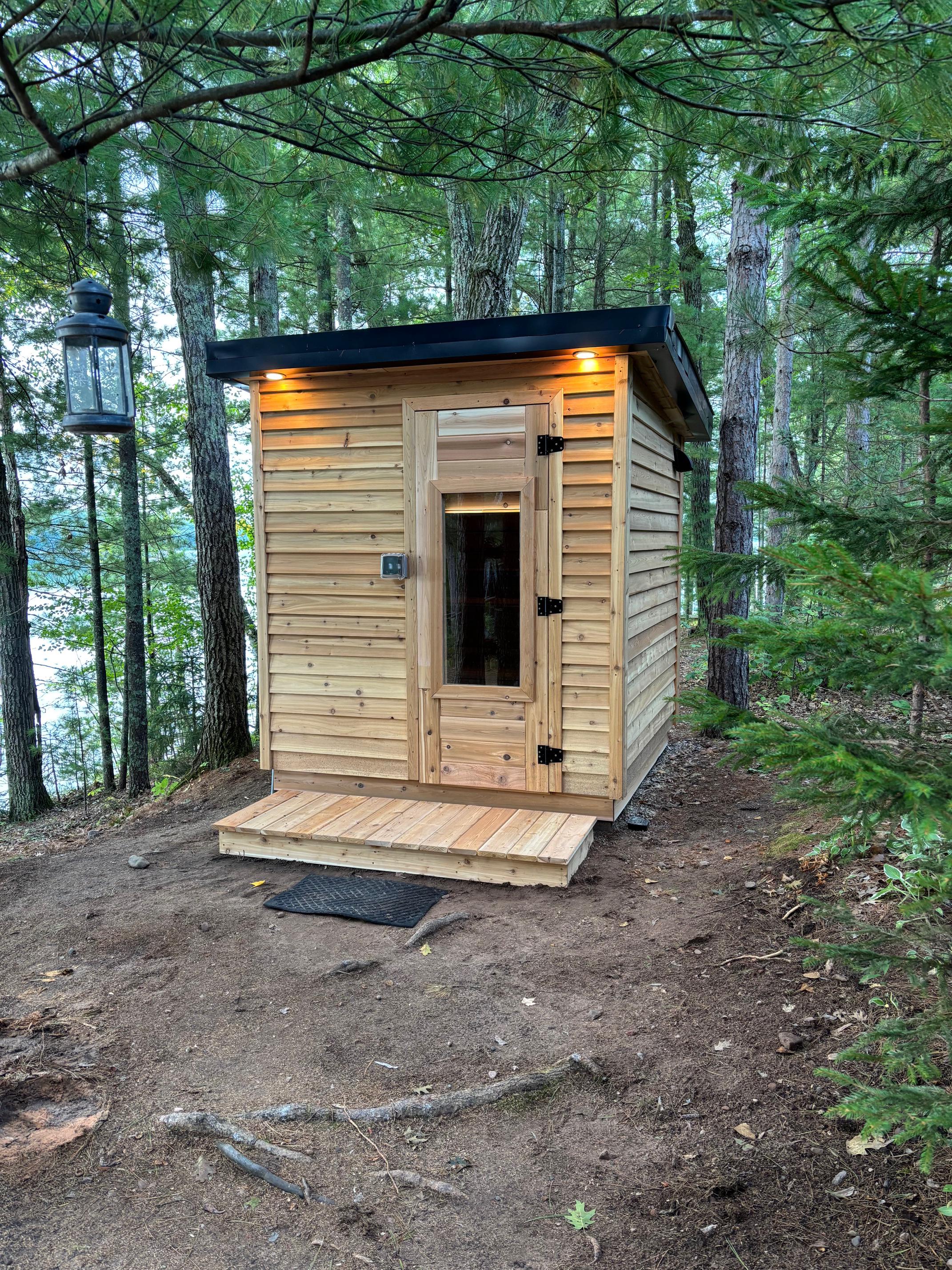

For siding, you can choose almost any exterior-rated material. One of the most affordable and DIY-friendly options is overlapped fence boards. Installed properly, they create a durable and attractive exterior finish at a fraction of the cost of premium siding products.
Lesson 5
Controlling Heat and Moisture of Your DIY Sauna
At this stage, your sauna shell is fully enclosed. Now we focus on one of the most important systems in the entire build:
Heat retention and moisture control.
A sauna operates at extreme temperatures — often up to 194°F — while exterior temperatures may range from well below freezing to peak summer heat. That temperature difference creates strong vapor pressure and natural convection. If not managed properly, moisture can migrate into the roof and wall assemblies.
This lesson focuses on three key elements: insulation choice, proper roof ventilation space, and vapor control.
1. Choosing the Right Insulation
For this build, use mineral wool (rockwool) insulation in the walls and ceiling.
Mineral wool is ideal because it:
- Handles high temperatures
- Does not absorb moisture easily
- Maintains its R-value over time
- Is fire-resistant
Fiberglass can be used, but mineral wool performs better in high-heat environments and is more forgiving if minor moisture exposure occurs.
The ceiling is especially important. Heat rises, and the majority of thermal loss happens through the roof. Make sure the ceiling cavities are fully insulated without gaps or compression.
Proper insulation ensures:
- Faster heat-up time
- Lower heater energy use
- More consistent interior temperatures

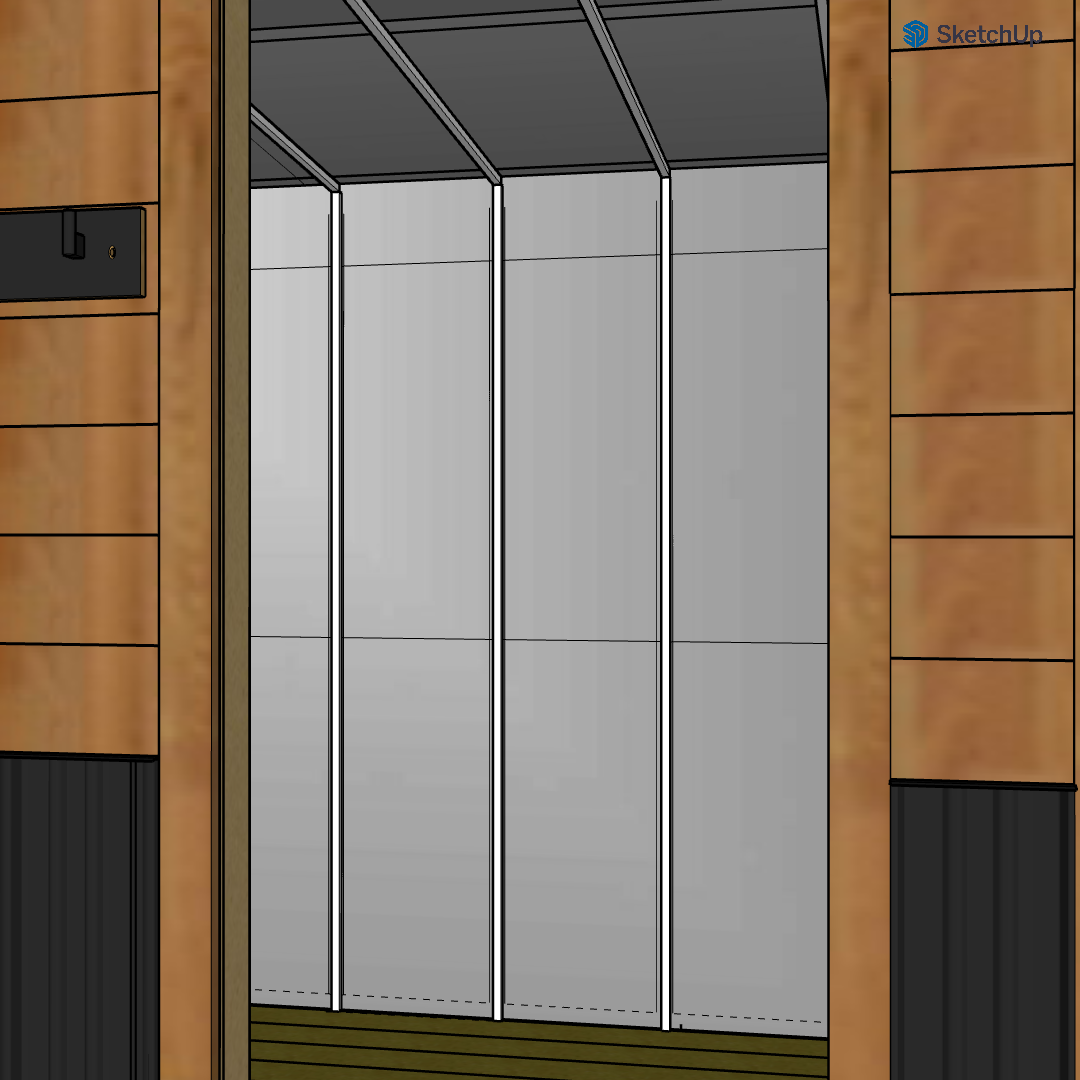

2. Installing a Reflective Vapor Barrier
Once insulation is installed, cover the walls and ceiling with a continuous reflective vapor barrier.
This layer serves two purposes:
- It blocks interior moisture from entering the wall cavities
- It reflects radiant heat back into the sauna
Install the barrier tightly and continuously across all insulated surfaces. Overlap seams and tape them with foil HVAC tape to maintain continuity.
Pay special attention to:
- Corners
- Ceiling-to-wall transitions
- Electrical penetrations
Any gaps in this layer become potential moisture entry points.
In a sauna, vapor control is more critical than in a standard house wall because of the intense temperature differential. This layer is what protects your framing from long-term moisture damage.
3. Air Gaps and Interior Strapping
Before installing your cedar or hemlock interior cladding, add horizontal strapping (typically 1x2s) over the vapor barrier.
This creates a small air space between the foil barrier and the interior wood finish.
That air gap:
- Improves heat reflection
- Allows minor drying
- Reduces direct heat transfer to framing
- Provides a secure fastening surface for wall boards
Without this cavity, condensation can form directly behind your interior boards.
This small detail dramatically improves long-term performance and durability.
Lesson 6

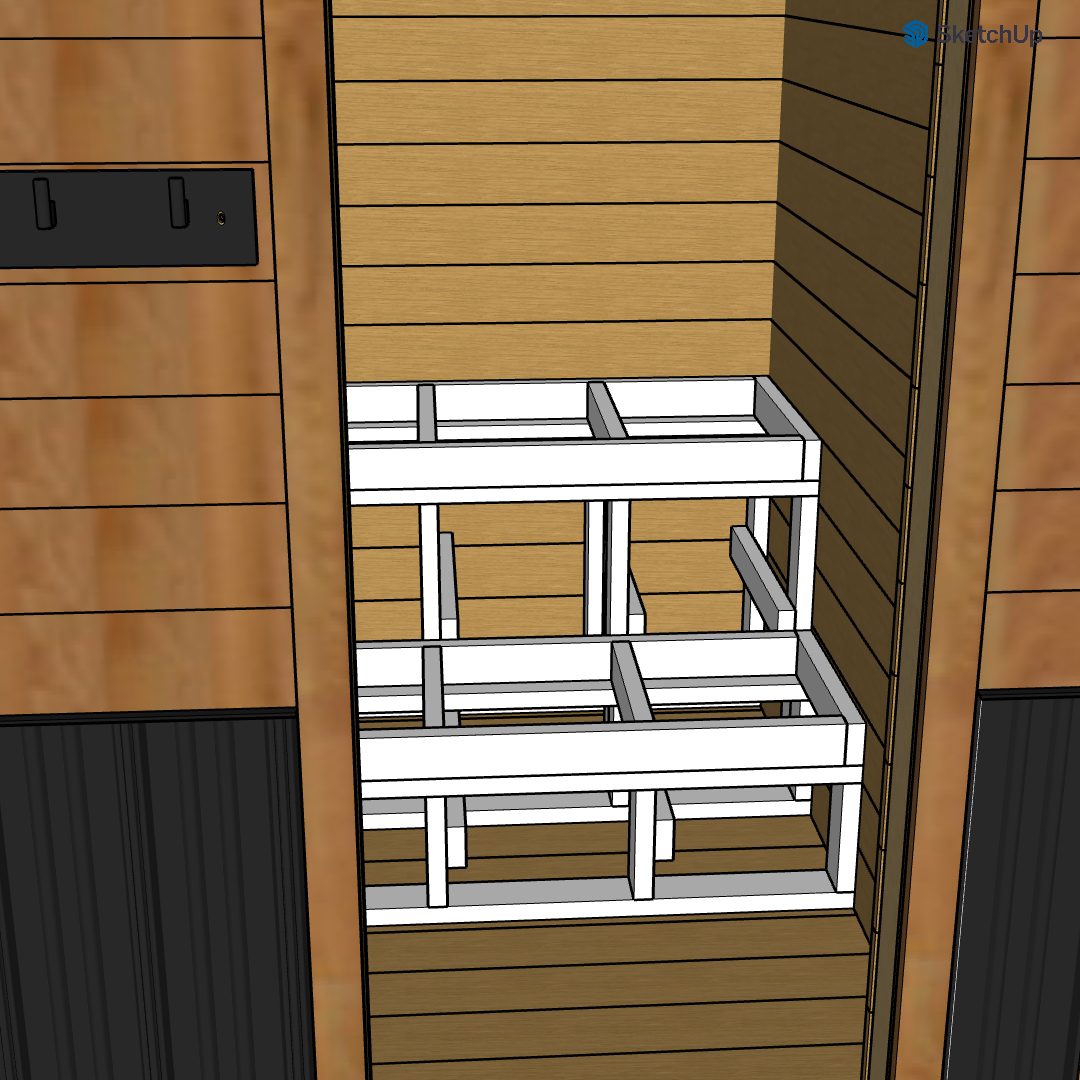

Interior Design DIY Sauna: Benches, Heater, and Ventilation
This is the stage where your sauna stops feeling like a structure and starts feeling like an experience.
Interior materials, bench layout, heater type, and ventilation all work together. If one of these is poorly planned, the sauna won’t perform the way it should — no matter how well it’s built.
This lesson focuses on three essential decisions that determine comfort, safety, and overall performance.
1. Choosing the Interior Wood
For the interior walls and benches, choose softwoods that perform well in high heat and humidity.
The two best options for this build are:
- Cedar
- Hemlock
- Aspen
Cedar is naturally resistant to moisture and has the traditional sauna aroma many people love. It also stays relatively cool to the touch.
Hemlock is an excellent alternative. It has:
- A clean, modern look
- Minimal scent
- Very stable grain
- Typically lower cost than cedar
Both are suitable because:
- They resist warping
- They handle temperature swings
- They remain comfortable to sit against
Avoid pressure-treated lumber or hardwoods inside the sauna. Hardwoods tend to get too hot, and treated lumber is not designed for high-heat environments.
For bench boards, use smooth 1x4 or 1x6 boards with slight spacing between them to allow airflow and drainage.
2. Bench Configuration and Layout
ench height directly affects how hot the experience feels.
Heat rises. The higher you sit, the hotter it gets.
A common and effective configuration includes:
- One lower bench
- One upper bench
The upper bench should position bathers well above the heater stones to fully experience radiant and convective heat.
When planning layout, consider:
- Door swing
- Heater clearance requirements
- Comfort and legroom
- Safe entry and exit
Benches should be sturdy and well-supported. Use solid framing beneath the bench boards and fasten securely into wall framing or dedicated supports.
Good bench design isn’t just about seating — it controls the heat experience.
3. Heater Types and Proper Ventilation
You have two primary heater options:
Electric Heater
- Easier to install
- Cleaner operation
- Requires proper electrical planning
- Must follow manufacturer clearance specifications
Wood-Burning Heater
- Traditional sauna experience
- Requires chimney and proper clearances
- Needs non-combustible floor protection
- Requires additional ventilation planning
No matter which heater you choose, ventilation is critical.
A sauna needs:
- Fresh air intake near the heater
- Exhaust vent on the opposite wall, typically lower
This allows:
- Oxygen for combustion (wood stove)
- Fresh air circulation
- Even heat distribution
- Removal of excess moisture
Because of the large temperature difference between inside and outside, natural convection will create strong airflow when vents are properly placed.
Without ventilation:
- Heat becomes uneven
- Air feels heavy
- Moisture lingers
With proper ventilation:
- Heat feels softer and more breathable
- Air stays fresh
- The structure dries faster after use
